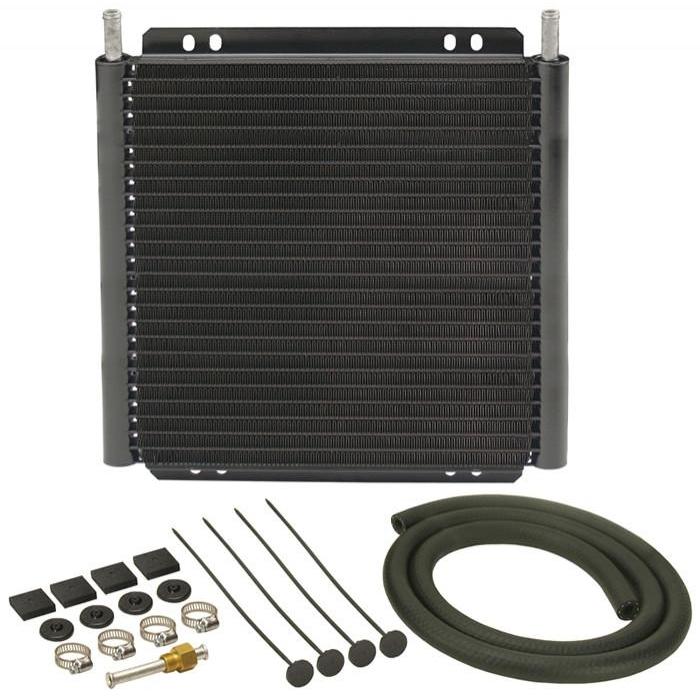

A step up from Tube & Fin type coolers, this Plate and Fin cooler features strong furnace-brazed construction, 7/8" wide plates, 3/4" embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for full size cars trucks and SUVs with medium to light-heavy duty use and consistent towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.
Specifications
- Cooler style: Plate & Fin
- Construction: Aluminum
- Inlet size: 11/32" barb
- GVW: 22500
- Width: 11"
- Height: 12"
- Depth: 7/8"
- Inlet dim: 10-1/4"
- Mounting: 6-3/4" x 10-1/2"
- Hose size: 11/32"
- Hose length: 4'
Features
- Embossed turbulators inserted in each tube agitate fluid for maximum heat transfer
- Extruded plastic cooling fin guards
- Improves transmission performance
- Sturdy furnace-brazed aluminum construction
- 24 row cooler design
- 3/4" embossed turbulators maximize cooling & minimize pressure drop
- 11/32" hose barb inlets
- 24000 GVW rated
- Complete hardware kit included
- Fluid Capacity: 8 oz.
